Multi-Biometrics Access Control Modules for Entrance Control Solutions

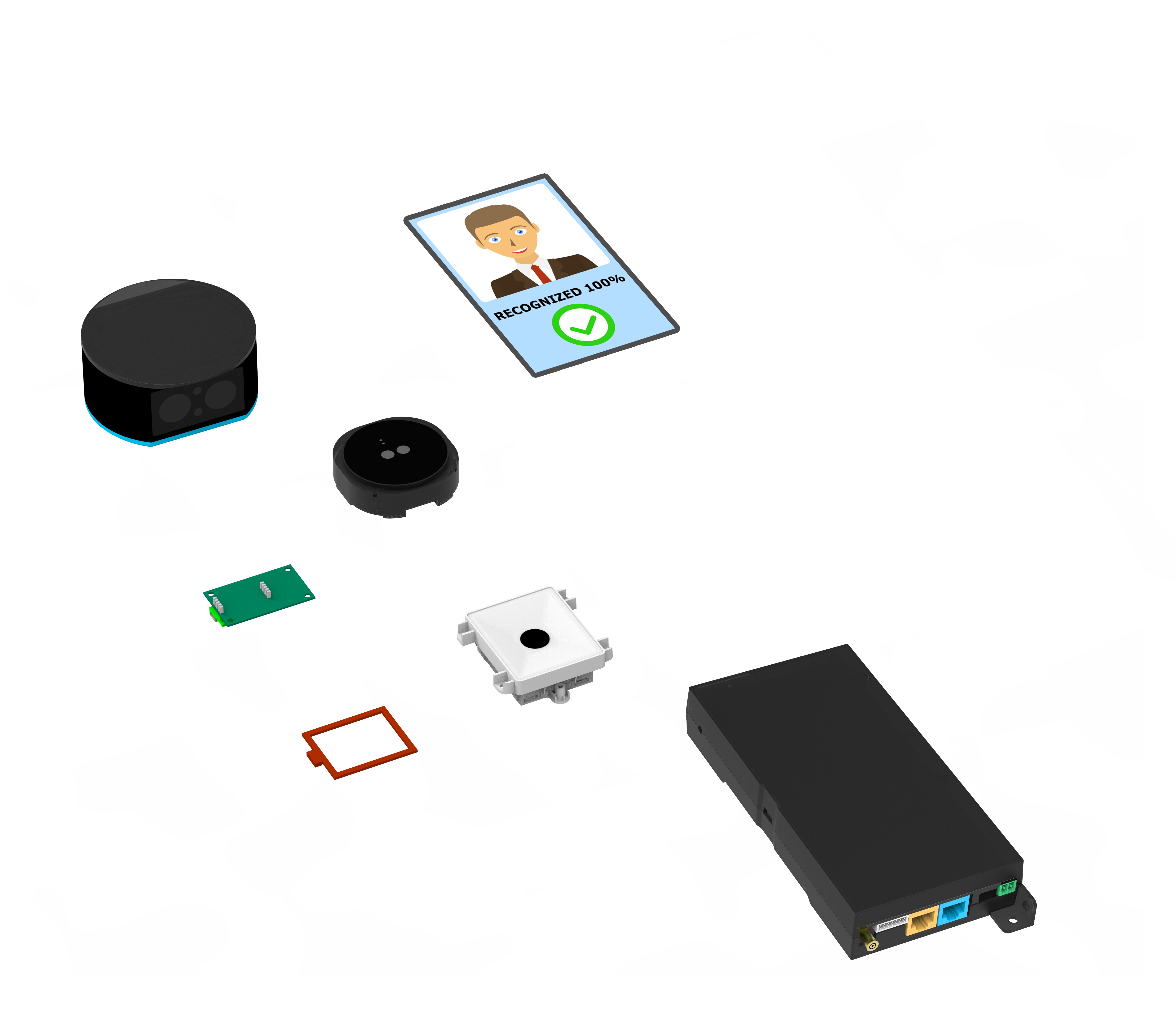

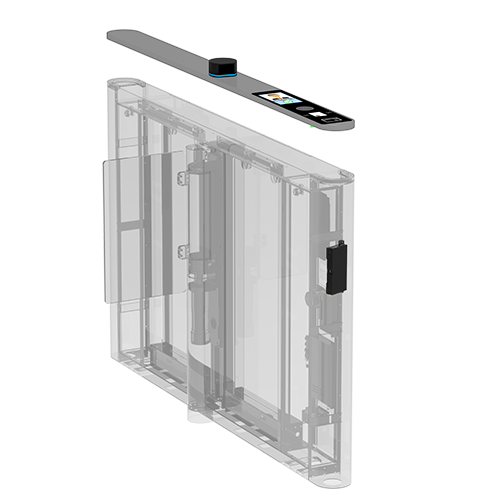

ZKTeco’s multi-biometrics access control modules are a smart and professional access control system for pedestrian passage products. It is integrated with turnstiles. The device consists of several modules, such as the RFID / Face / Palm / QR code recognition module, the LCD display, and the main/sub access control board. Based on the Android system design, it supports over-the-air upgrades for the device's firmware. Moreover, it allows for secondary development and integration through the provided SDK/API.
Display
7-inch LCD Screen (1024*600 Pixels) (Optional)
Camera
2MP Binocular Camera (field of view as wide as 118.9°)
Operation System
Android14
Authentication Method
Face / RFID( standard), Palm / QR Code (optional)
Hardware
CPU: Quad-core A55, Up to 2.0GHz
Face Template Capacity
100,000 (1:N)
Palm Template Capacity
50,000 (1:N)
Card/QR Capacity
100,000 (1:N)
Transaction Capacity
1,000,000
Biometric Authentication Speed
less than 0.5 sec (Facial Recognition)
less than 0.5 sec (Palm Recognition)
Card Type
ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)
Communication
TCP/IP*1
NFC (ISO/IEC 14443A)
Wi-Fi (IEEE 802.1 a/b/g/n/ac) @2.4GHz ; 5GHz
Wiegand Input *1
RS485: ZKTeco RS485*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm *1
Housing Material
Face recognition module: ABS plastic
Palm recognition module: aluminum alloy
LCD display module: N/A
RFID reader: N/A
RFID reader module: ABS plastic
QR code
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code
93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code11, Industrial 2 of 5, Standard 2 of 5,MSI etc.
2D QR code (dynamic or static): QR / AZTEC/ PDF417/ DATAMATRIX
Standard Functions
Block list, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Schedule Bell,
Multiple Verification Methods
Certification
CE, FCC, ISO9001, ISO14001, ISO20000
