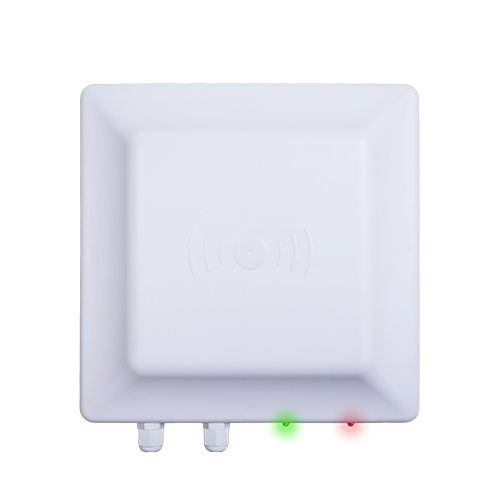

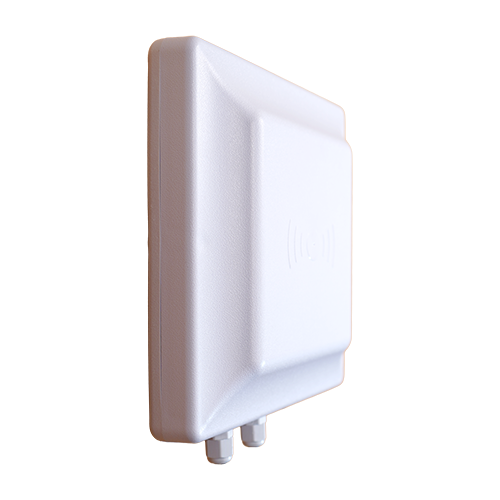

UHF-406 | Mid Range Wiegand Reader

UHF - 406

Mid Range Wiegand Reader

UHF-406 is an out door IP68-rated long-range 920-925MHz UHF card reader designed specifically for any UHF Card and Tag. With its 16 feet read-range, TW-UR5 provides users convenient RFID authentication for many applications including door access, vehicular gate access and any application in which the user no longer needs to have their RFID credential held in close range to the RFID reader. UHF-406 has a built-in Wiegand-Out port for control panel conectivity.

Feature:

Environmental Protection: The IP68 rating means it is completely airtight against dust and can be fully submerged in water. Ensuring longevity in extreme monsoon or coastal conditions.

Reading Speed: It processes tags in less than 6ms, allowing it to identify moving vehicles or fast-moving inventory on a conveyor without lag.

Dual Frequency Support: It is software-configurable to support: 865 to 868, 902 to 928, 910 to 914, 920 to 926 and 840 to 84

5 Antenna Logic: It utilizes a 12dBi high-gain antenna. Depending on your setup, it can be configured for circular polarization (better for varied tag angles) or linear polarization (better for max distance with specific tag orientation).

Enquire Now UHF - 406

Add to Cart UHF - 406

Compare

Copy Link to Share

Parameters

Model

UHF406
Dimensions

227*227*60(mm)
Reading Distance

0-5m
Communication Interface

Wiegand, USB , RS232, Inbuilt Relay,(TCP/IP Optional)
Frequency

865 to 868, 902 to 928, 910 to 914, 920 to 926 and 840 to 845
Ingress Protection

IP68 (waterproof and dustproof )
Interface Protocol

ISO 18000-6B, SO18000-6C(EPC GEN2)
Status Indication

LED Indication(Red & Green) with buzzer
Working Voltage

100-240V, DC+12V
