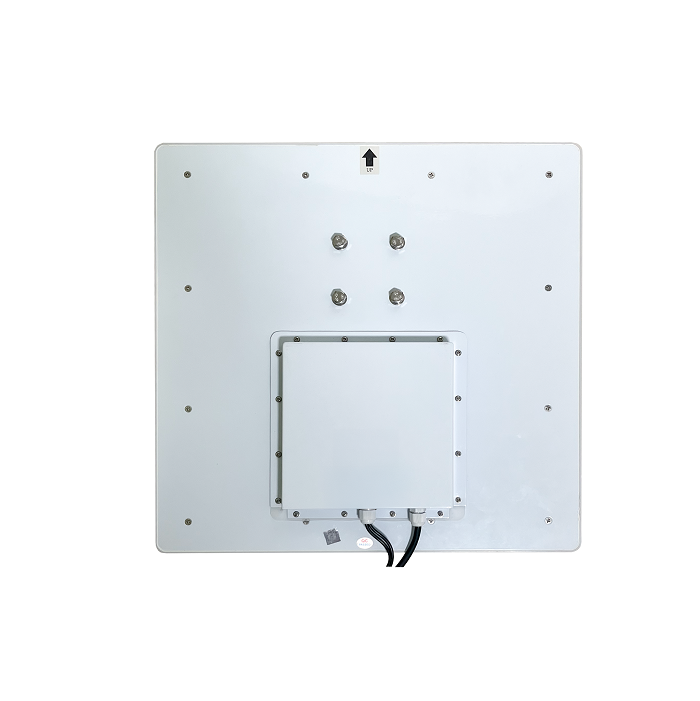

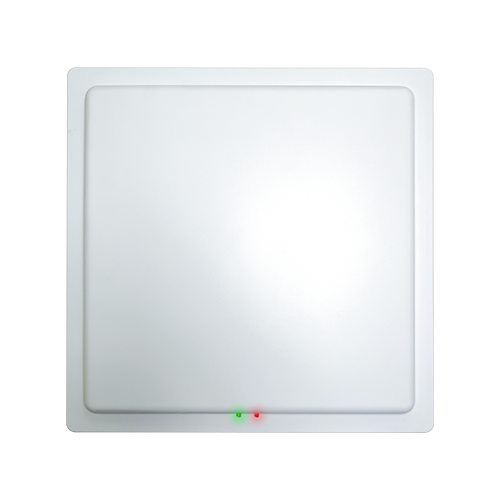

The UHF412 is a heavy-duty, integrated UHF RFID reader. Its standout feature is its massive 12-meter read range, which is signi cantly higher than standard "long-range" readers that typically cap at 12 meters. This makes it a premier choice for high-speed vehicle entry where the gate needs to open well before the car arrives.
Features
Environmental Protection: The IP68 rating means it is completely airtight against dust and can be fully submerged in water. Ensuring longevity in extreme monsoon or coastal conditions.
Reading Speed: It processes tags in less than 6ms, allowing it to identify moving vehicles or fast-moving inventory on a conveyor without lag.
Dual Frequency Support: It is software-congurable to support: 920–925 MHz, 902–928 MHz
Antenna Logic: It utilizes a 12dBi high-gain antenna. Depending on your setup, it can be congured for circular polarization (better for varied tag angles) or linear polarization (better for max distance with speci c tag orientation).
Dimensions
445*445*55(mm)
Reading Distance
0-12m
Communication Interface
Wiegand 34, USB , RS232, Inbuilt Relay,(TCP/IP Optional)
Frequency
920~925MHZ, 902~928MHz
Can be Customized to Other Frequency
Interface Protocol
ISO 18000-6B, EPC Class 1 Gen2 (ISO18000-6C)
Working Temperature
-20°C to 80°C
Working Voltage
100-240V, DC+9V (Power Adapter)
(Silver and above members can download after logging in)
UHF-412 Data Sheet
1.45MB
2026-01-06
