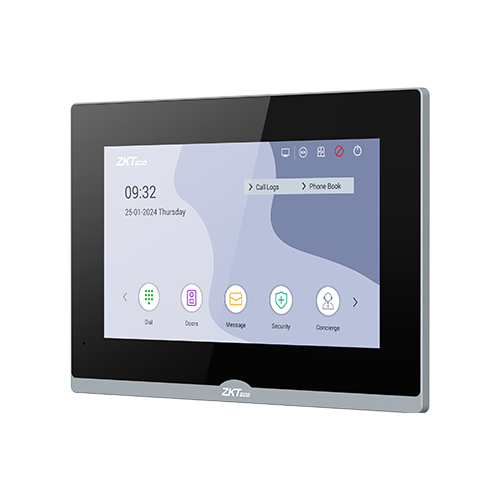

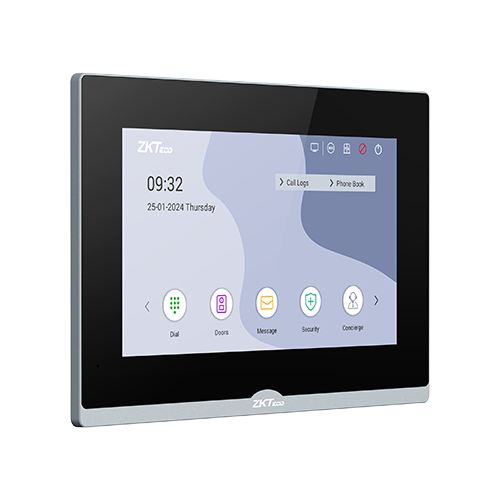

The VT07-B26L-W is a smart video indoor monitor provides multiple functions, including two-way talking video intercom, emergency call, and security alarm, etc. It also supports communication via SIP 2.0 protocol with IP phone and IP-PBX solution. It allows constructor to make an easy configuration and installation.
Features
• 2-way audio and video communication over IP network
• 7-inch capacitive touch screen (1024 x 600)
• Powered by PoE (IEEE 802.3af) or power adapter (DC12V/2A)
• Support Wi-Fi (IEEE 802.11 b/g/n/ac) connection
• Support up to 8 IPC channels display
• Support TF card (max. 32GB)
Operating System
Linux
Display
7-inch TFT LCD
Resolution
1024 x 600
Alarm Input
Support 8 sensor zones: smoke, gas,
PIR, door, window, panic and flood
Audio
Audio Codec
G.711
Dimensions
195 x 130 x 14.5 mm
Doorbell Input
Max. 8 input
Echo Cancellation
support
Ethernet Port
2 x RJ45, 10/ 100 Mbps self-adaptive
Microphone
Built-in microphone
Power
128 MB
Protocol
SIP 2.0, UDP, TCP, RTP, RTSP, NTP,
DNS, HTTP, DHCP, IPV4, ARP, ICMP
RAM
128 MB
ROM
128 MB
Screen
Capacitive touch screen
Speaker
8Ω / 1W
TF Card Slot
1 (max. 32GB)
Video Codec
H.264
Wi-Fi
IEEE 802.11 b/ g/ n, @ 2.4 GHz
