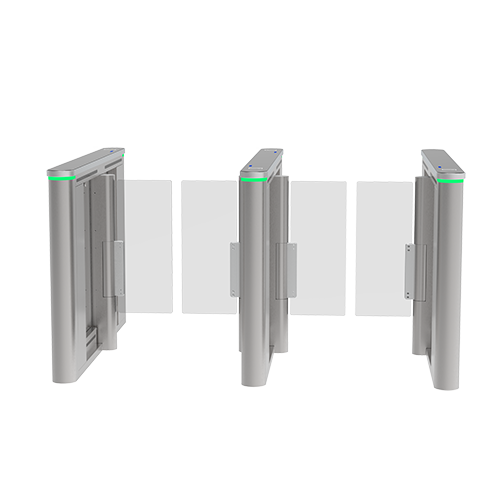

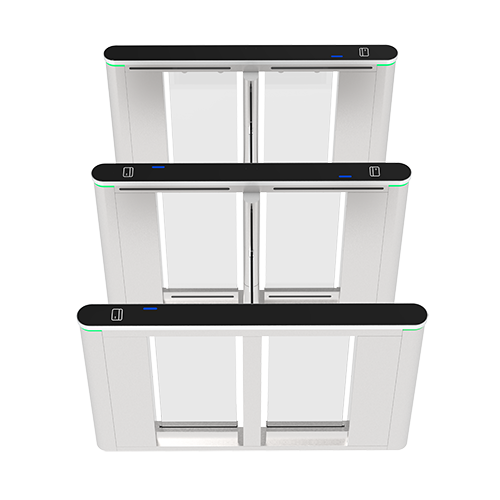

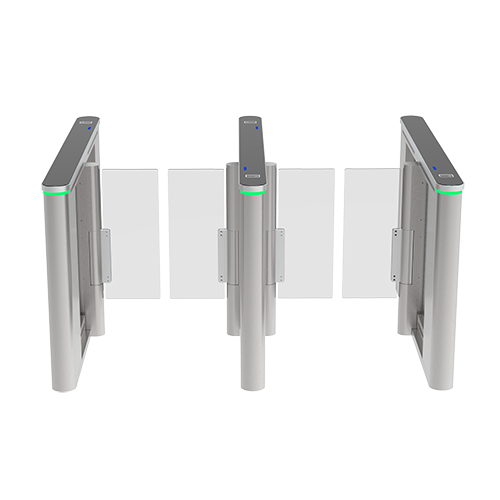

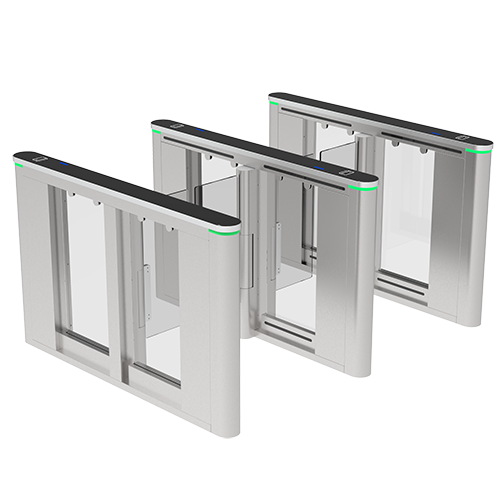

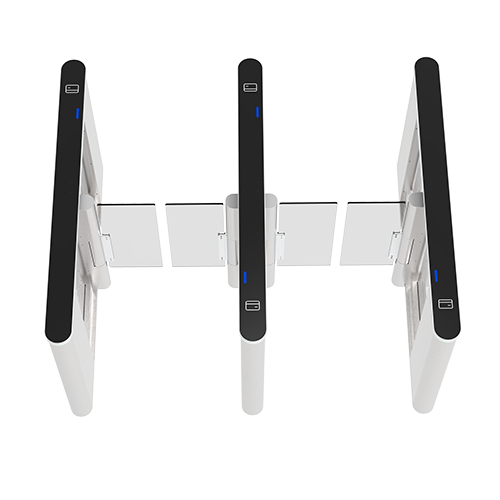

The ZKTeco SBTL8000/SBTL8200 series swing barrier provides advanced access control, blending robust security with an efficient passage experience. The transparent acrylic swing barriers and full aluminium top cover with tempered glass lid create a modern, premium aesthetic, and the SUS304 stainless steel chassis ensures durability and long-term stability.
What sets this series apart is its comprehensive integration of safety and deployment efficiency. Driven by a high-precision servo motor, the swing barrier provides smooth movement with an adjustable opening and closing time of 0.3 to 0.6 seconds, enabling efficient passenger flow while maintaining strict access control. The SBTL8000/SBTL8200 series is equipped with 12–18 pairs of infrared sensors for precise pedestrian detection and provides an adjustable lane width of 660 mm (standard) to 1000 mm (optional), accommodating diverse accessibility needs. The swing barrier is pre-assembled for rapid installation and integrates seamlessly with ZKBio CVAccess or ZKBio CVSecurity to form a comprehensive access control solution.
Model Name
SBTL8000 Series
SBTL8200 Series
Audio Indicator
Internal buzzer
Visual Indicator
Top LED indicator:
Blue=Door closed / standby
Green=Door open
Red=Door close/alarm
Accessibility
Facial Authentication: 30 passengers per minute
QR Code(Dynamic/ Static): 30 passengers per minute
RFID: 35 passengers per minute
Application Environment
Indoor/outdoor
Barrier Material
Transparent Acrylic
Barrier Movement
Swing
Chassis Colour
Metallic gray
Chassis Material
SUS304 stainless steel
Clutch
Equipped
Controller
Not equipped, C3 series controller/ InBio series controller (optional).
3rd-party controller subject to turnstile chassis space.
Credential Options
Post mount RFID reader: (support model: Pro ID Series, KR Series)
Post mount QR code reader: QR500
Dimension (L*W*H)
1613*134*1017.5mm (standard ;IPX4 protection rating)
1613*134*1031.5mm (optional ; IP65 protection rating)
Flow Rate
Facial Authentication: 30 passengers per minute
QR Code(Dynamic/ Static): 30 passengers per minute
RFID: 35 passengers per minute
IR Sensors
12 pairs (Standard); 18 pairs (Optional)
Ingress Protection Rating
IPX4 for water resistant(standard);
IP65 for dustproof and waterproof(internal componenets customized upon customer
request)
Note: Please be aware that selecting the IP65 ingress protection rating will increase the
overall device height by 14mm compared to the standard IPX4 configuration.
Lane Type
SBTL8000 Series : Single Lane
SBTL8200 Series : Dual Lane
Lane Width (mm)
660mm (Standard) / 1000mm (Optional)
Lid Material
Full aluminium top cover with tempered glass
Lid Options Authentication Methods
Undermount options: QR Code (Dynamic/ Static)/ RFID
Post mount options: Facial Authentication
MCBF
10 million
MTTR
60 minutes
Motherboard Communication
Fire alarm port (Relay)*1, RS485 port*1
Motherboard Function
System configuration, access mode configuration
Motor
Servo motor
Movement Speed
Average 0.3s to 0.6s per movement (Adjustable open/close timing)
Safety Features
Power off unlock device/ Fire alarm active door release
Security Features
Anti-tailgating, anti-pinch
Supported Software
ZKBio CVAccess / ZKBio CVSecurity (depends on equipped access controller)
Working Temperature
−20°C to 70°C
Certifications
CE, FCC
