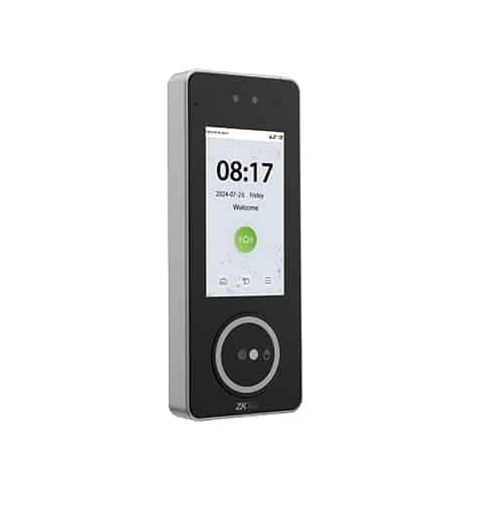

SpeedFace-V5 is a smart access control terminal equipped with the visible light face and palm authentication technology, which applies the latest algorithms and advanced computer vision technology. It supports a variety of identification methods, including face/palm/card, etc. Besides, the terminal supports large capacity and speedy authentication.
SpeedFace-V5 eliminates hygiene concerns with contactless biometircs technology. It is also equipped with anti-spoofing algorithms for facial and palm authentication to defend against almost all types of fake photo and video attacks. Importantly, high-precision palm authentication takes only 0.35s per hand. The palm data is then compared to the maximum of 5,000 palm templates. Besides, SpeedFace-V5 is an access control terminal featuring a video intercom function. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol.
Features
· Visible Light Facial & Palm Authentication
· Better hygiene with touchless biometric authentication
· Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
· Available card modules:125 KHz ID card / 13.56MHz IC card
· New palm module adapts to a variety of lighting conditions, and is equipped with multi-color LED lights to assist in palm positioning to enhance the user experience
· HD video door phone via SIP 2.0 Protocol. Compatible with ZKTeco SIP Video Intercom Indoor Monitor
Model
SpeedFace-V5
Display
5"@ ISP Color LCD Touch Screen (720*1280)
Camera
WDR Low Light Camera @ 2MP
Operation System
Linux
Face Template
10,000 (1:N)
Hardware
CPU: 1GHz Dual Core
RAM: 1G; ROM: 8G
Supplement Light: Yes
Card Capacity
20,000 (1:N)
Authentication Method
Face / Palm / Card / Password (Virtual Keypad)
Card Type
ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)
Certifications
ISO14001, ISO9001, CE, FCC, RoHS
Communication
TCP/IP*1
Wi-Fi (IEEE 802.1 a/b/g/n/ac) @2.4GHz ; 5GHz
Wiegand (Input or Output)*1
RS485: ZKTeco RS485*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm *1
Standard Functions
ADMS, T9 Input, 14-digit User ID, Access Levels, Groups, Holidays,
Antipassback, Record Query, Schedule Bell, Tamper Switch Alarm, Mask
Detection ,Multiple Verification Methods, SIP 2.0 Protocol, AC Push and TA
Push Protocol Switch
Supported Software
Software: easy TimePro / ZKBio CVSecurity
Mobile App: ZSmart
Transaction Capacity
20,000
