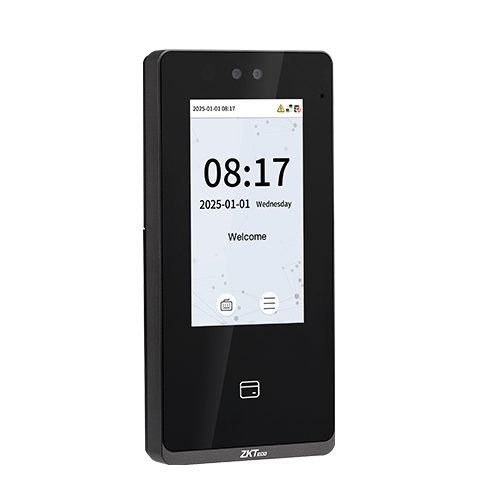

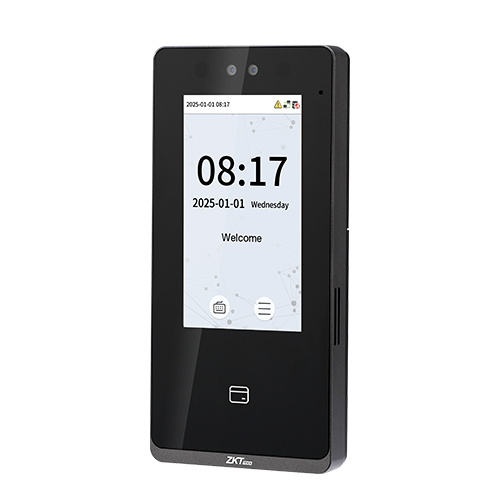

MiniAC adopts the latest intelligent engineering facial authentication and technology. facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoog algorithm for facial authentication against almost all types of fake photos and videos attack, which offering secure biometric authentication.
MiniAC is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0). Besides, MiniAC supports multiple communication protocols. Its has AC push and can convert to TA push and it is compatible with various AC or TA software. It can change to BEST protocol to link with ZKBio Zlink (AC module).
Feature
• Visible Light Facial Authentication Technology
• Attained IP65 Protection Rating With Dustproof and Waterproof
• Multiple Authentication Methods: Facial / RFID / Password
• Available RFID Modules:125 kHz ID Card / 13.56 MHz IC Card
• HD Video Door Phone Via SIP Protocol (Version 2.0)
• User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
• Compatible with wireless doorbell (optional)
• Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door Sensor; Exit Button)
Display
4.3"@ TFT Color Touch LED Screen (272*480)
Camera
WDR Binocular Camera @ 1MP
Operation System
Linux
Hardware
CPU: Dual Core@1GHz
RAM: 512MB; ROM: 8GB
Speaker: 8ohm @1W
Microphone: *1 (Sensitivity: -42 dB/ Omni-directional/ Signal-to-Noise Ratio: 58 dB/
Impedance: 2.2kΩ)
Supplement Light: No
Authentication Method
Face / Card / Password (Virtual Keypad)
Face Template
1,500 (1:N) (Standard)
Card Capacity
1,500 (1:N) (Standard)
User Capacity
1,500 (1:N) (Standard)
Transaction Capacity
200,000 (1:N)
Password Capacity
8 Digits
Facial Recognition Distance
30cm to 200cm (Facial Authentication)
Card Type
ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)
Communication
TCP/IP*1, Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional), Wiegand (Input or Output)*1,
RS485: ZKTeco RS485*1, USB: Type A (USB Drive Only)*1,
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1
Optional Functions
IC Card, Wireless Doorbell
Standard Functions
ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels,
Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm,
Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF
(Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA
Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
Supported Software
On-Premise Software: ZKBio CVSecurity (AC PUSH) & easy TimePro (TA PUSH)
Cloud-based Software: BioTime Cloud 2.0, ZKBio Zlink (Supports Web Portal & Mobile App)
Facial Recognition Speed
less than 0.35 sec (Facial Authentication)
Ingress Protection Rating
IP65 (waterproof and dustproof )
Certificates
ISO14001, ISO9001, CE, FCC, RoHS
(Silver and above members can download after logging in)
MiniAC Datasheet- 2025
19.75MB
2025-10-15
