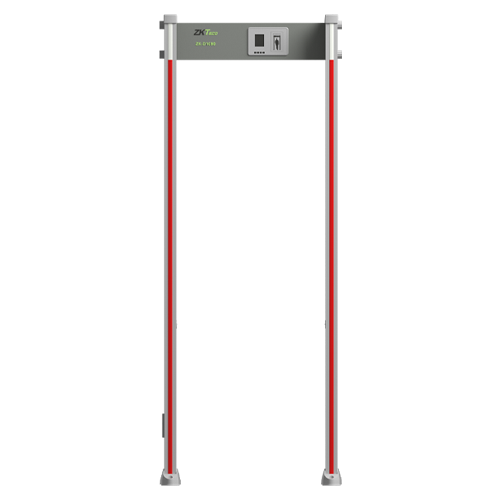

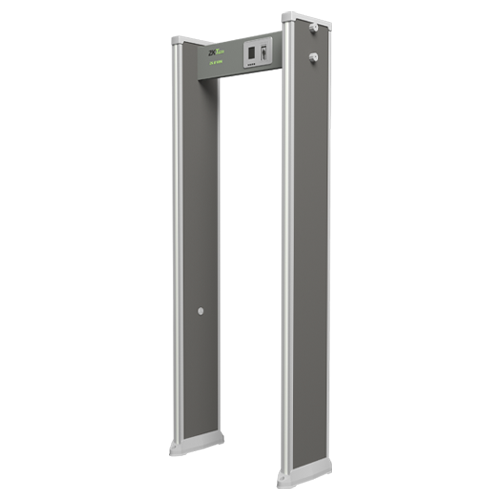

ZK-D1090 is a cost-effective walk through metal detector designed for human security screening. Featuring 9 detection zones with 500 adjustable sensitivity levels, it offers good accuracy to detect small threats while ensuring safe operation for the human body. ZK-D1090 provides synchronized LED and audio alerts when contrabands are detected. Also, the anti-interference technology and high throughput make it for securing high-traffic areas such as schools, public venues, and corporate entrances.
Display
2.8'' TFT Color Screen
Physical Keypad
4 keys
Detection Zones
3 / 6 / 9 zones mode adjustable
Sensitivity Level
500
Detected Contrabands
Ferrous and non-ferrous metal weapons
Detection Mode
Automatic Detection Mode/ Infrared Detection Mode (default)
Detection Sound Alert
0-6 levels of volume adjustable (Maximum volume 80 dB)
Detection Visual Indicator
2 sets of LEDs (red) are evenly distributed on the left and right door panels
LED (Steady red= metal contraband detected)
Dimensions (L*W*H)
2221 * 859 * 405 (mm)
Dimensions with Packing(L*W*H)
2280 * 457 * 280 (mm)
Lane Size (L*W*H)
2007 * 710 * 315 (mm)
Power Supply
AC100V to 240V (DC12V/3A)
Self-diagnosis Program
Yes
Throughput Rate
> 40 persons per minute
Certifications
CE, FCC, ISO9001
(Silver and above members can download after logging in)
ZK-D1090 Data Sheet
1.26MB
2025-08-26
