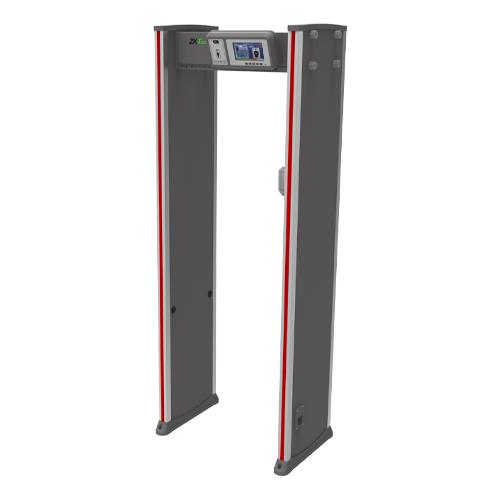

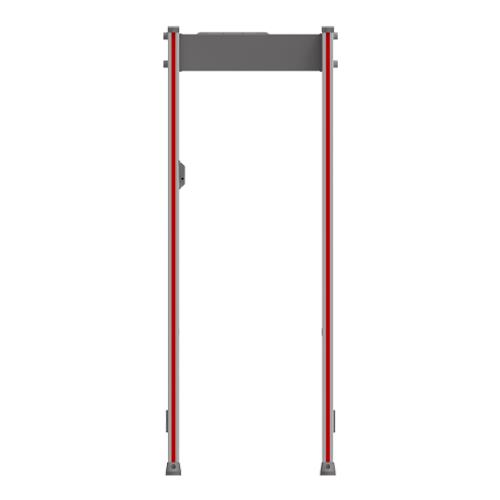

ZK-D3180V

ZK-D3180V is a high-performance walk-through metal detector engineered for accurate and reliable security screening. With 18 detection zones and 500 adjustable sensitivity levels, it ensures precise identification of even small metal threats while maintaining safe operation for all users.

Powered by advanced inspection technology, the ZK-D3180V features an integrated 2MP camera and a 7-inch LCD display that provide real-time video monitoring. This allows security personnel to visually track passenger movement, review detection events, and analyze alarm data with ease.

Enquire Now ZK-D3180V

Add to Cart ZK-D3180V

Compare

Copy Link to Share

Parameters

Display

7-inch LCD color screen (800 × 480)
Physical Keypad

5 function keys
Overhead Control Unit

Live video display, photo capture (up to 6 alarm-linked images), alarm count, pass count, channel selection, date & time display, battery status indicator
Photo Resolution

240 × 320
Camera

Embedded monocular 2MP camera
Alarm Volume

Adjustable from 0 to 100 (default: 80)
Alarm sound

16 selectable alarm tones
Detected Contrabands

Ferrous and non-ferrous metal weapons
Detection Mode

Automatic detection mode / Infrared detection mode (default)
Detection Visual Indicator

Two sets of LEDs evenly distributed on the left and right door panels; steady red LED indicates metal contraband detection
Detection Zones

18 zones
Housing Material

Flame-retardant ABS polymer, medium-density fiberboard (MDF), PVC
Maximum Detection Distance

20 mm – 2000 mm
Power Supply

AC 100V–240V (DC 12V / 3A)
Sensitivity Level

500 adjustable levels
Supported Software

ZKBio SIS / ZK Metal Detector
Throughput Rate

Up to 40 persons per minute
Certifications

CE, FCC, ISO 9001
